New Build Lintel System

Specialist roller shutter lintel
system for new build projects

The Build

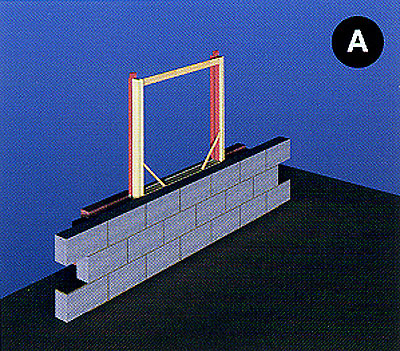

New Dawn - The Build Phase APhase [A]
Subframe positioned.

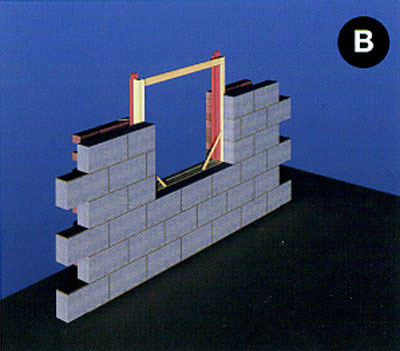

New Dawn - The Build Phase BPhase [B]
Brick and blockwork around subframe.

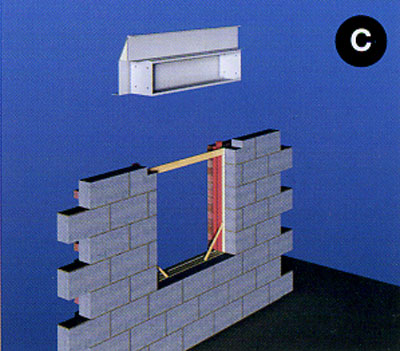

New Dawn - The Build Phase CPhase [C]
Blockwork stepped at opening height for lintel location.

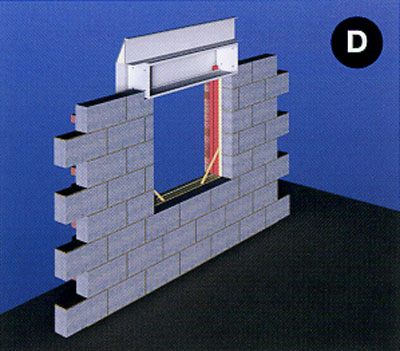

New Dawn - The Build Phase DPhase [D]
Lintel located over subframe guide locator and supported on stepped blockwork.

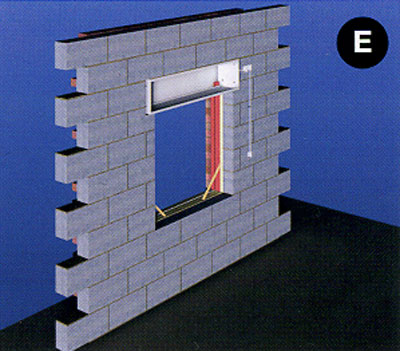

New Dawn - The Build Phase EPhase [E]
Brick and blockwork complete around lintel, subframe and electrical first fix.

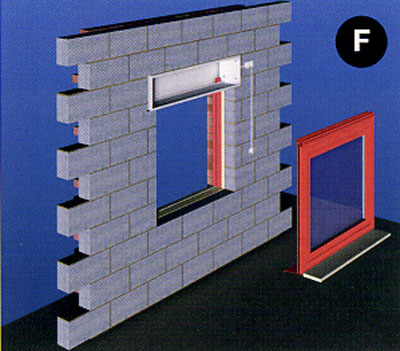

New Dawn - The Build Phase FPhase [F]
Removal of timber supports and installations of window/door frame.

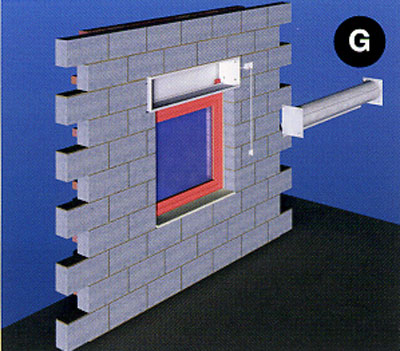

New Dawn - The Build Phase GPhase [G]
Installation of roller shutter brackerty and roller shutter.

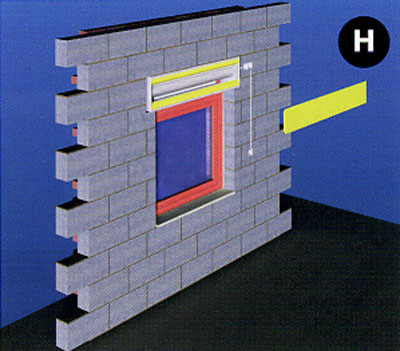

New Dawn - The Build Phase HPhase [H]
Installation of insulation.

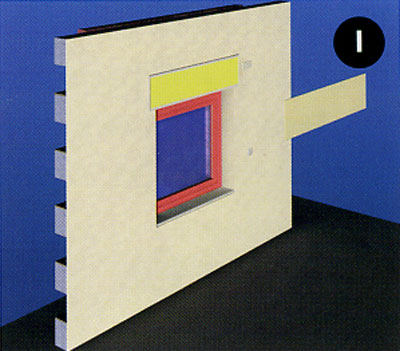

New Dawn - The Build Phase IPhase [I]
Internal plastering and soffit board installation plus removable access panel.

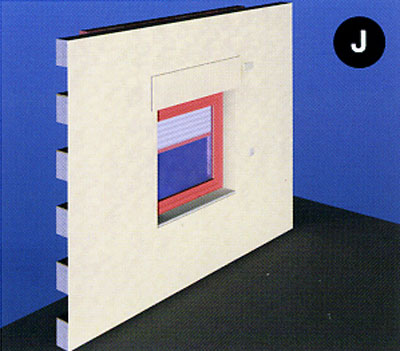

New Dawn - The Build Phase JPhase [J]
Check on mechanical settings.

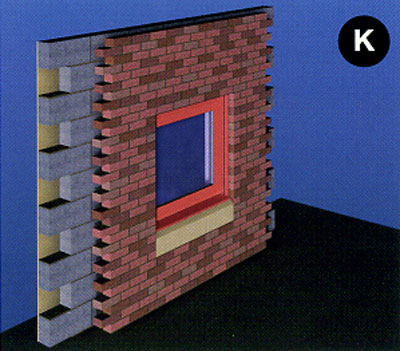

New Dawn - The Build Phase KPhase [K]
External view of shutter full open.

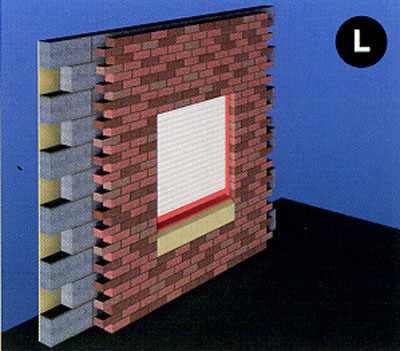

New Dawn - The Build Phase LPhase [L]
External view of shutter fully lowered.
